DATA SHEET:
SLWYV-75-10 LEAKY CABLE
SLWYV-50-10 LEAKY CABLE
Our Leaky feeder cable is widely used in mines, tunnels of Unites States, Canada, Australia, and Chile. We also have Low Samoke Zero Halogan jacket for this leaky feeder cable.
MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.
The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.
As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available
SLYWV-50-10 & SLYWV-75-10 Leaky Feeder Cable , Underground VHF Leaky Feeder Cable For Mines Communication
Quick Details:
-
MSHA Certificate
-

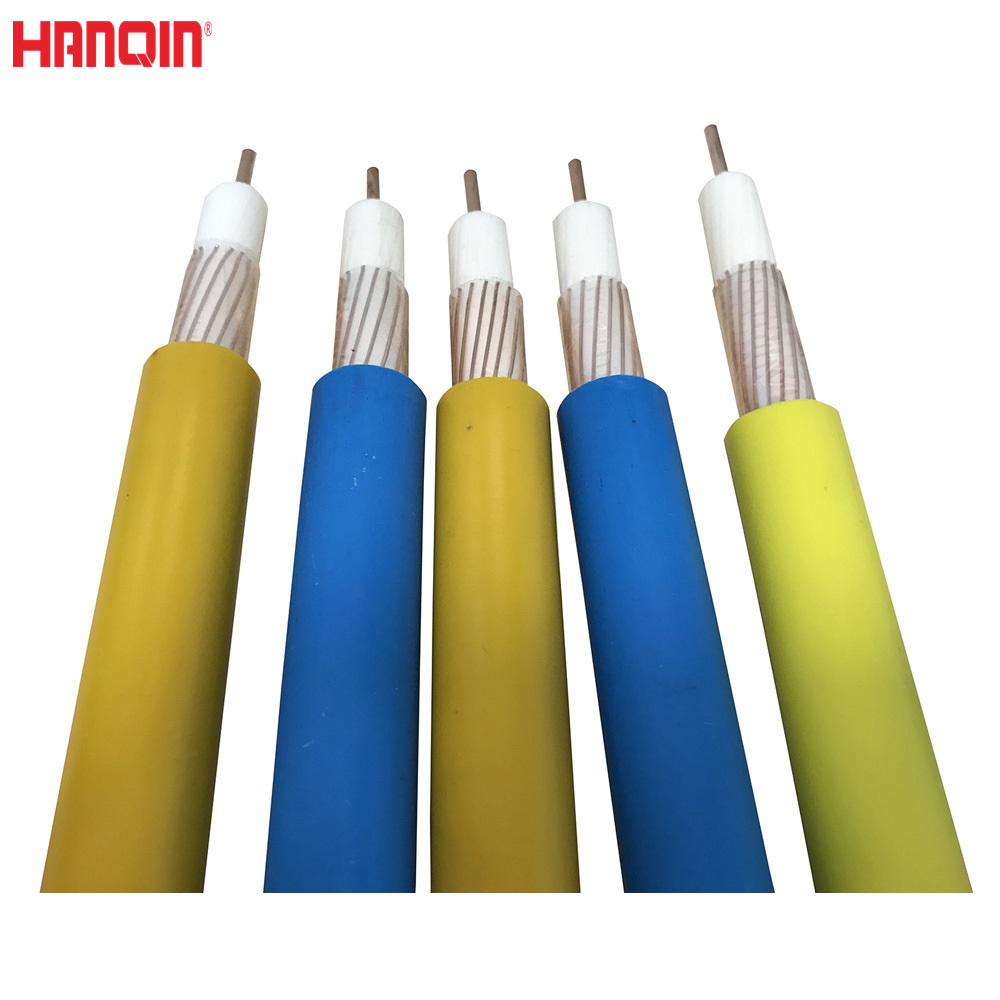

Solid Oxygen Free Copper Inner Conductor
-
Bare Copper Wire Braiding
-
Low Smoke Halogen Free Jacket or Fire Retardant Jacket
-
VHF Leaky Feeder Cable
-
50 Ohm & 75 Ohm Leaky Feeder Cable
Product description:

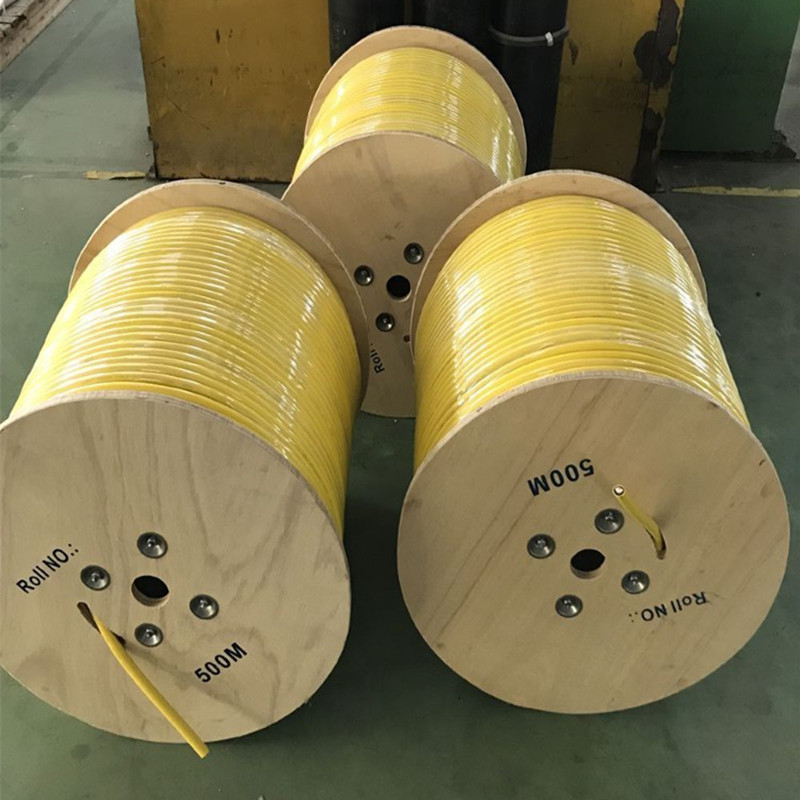

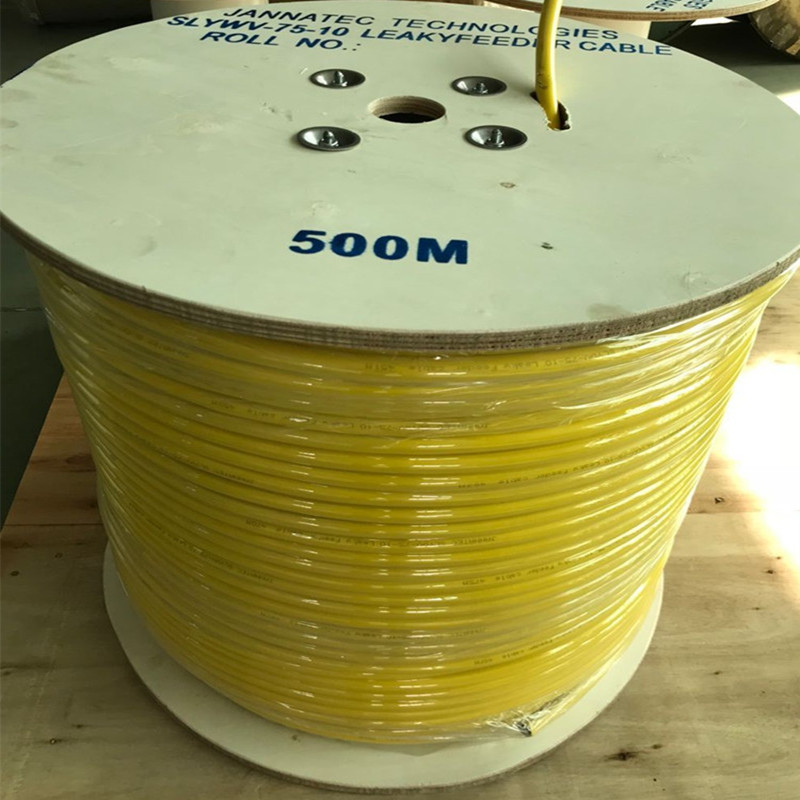

The standard length is 350m or 500m with a yellow outer jacket.The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe.
MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.
As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.
Applications:
-
Mines underground communication system
-
metro stations
-
tunnels
-
ships
-
In-building wireless systems.
-
perimeter detection
