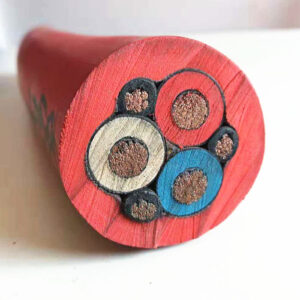

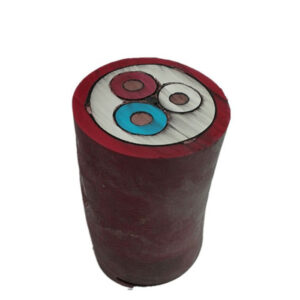

1.Type W G GC Portable Power Cable is suitable for use in Industrial and light-to-medium mining applications, heavy-duty service and temporary as power supply cables. Motor, battery and generator leads. It is also used for mobile and portable electrical equipment.Industrial and light to medium duty mining applications.Heavy duty service as power supply cable.Mobile and portable electrical equipment.3 and 4 conductor use on three-phase AC systems where grounding is required

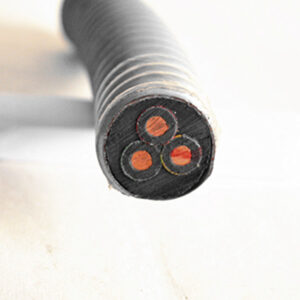

2.Flat submersible oil pump ESP cable is used for the power cable of ESP units which is installed on land or offshore oil Wells.

3.Flat submersible oil pump ESP cable : The cables for submersible oil pump or pump unit can be produced with different types and specifications, the cross-section of conductor is 42mm2 and below. The well temperature is from 50℃ to 180℃, the max. Continuous working temperature of conductor is 204℃. The insulation material that can be used is as below: PP, EPR, polyimide-F46, fluoroplastics, XLPE, etc. The material of inner jacket includes NBR, compound of the neoprene and PVC, EPR, fluoroplastics, lead, etc. The outer sheath material is as the galvanized steel tape, stainless steel tape, etc. All kinds of cables for submersible oil pump can be developed according to the customer’s requirements.




• Conductors are manufactured in accordance with ASTM and B-172
• Made in accordance with ICEA S-75-381
• NEMA WC-58 – Portable and Power Feeder Cables for Use in Mines and Similar Locations
• MSHA accepted, P-136-135, LR65300
• UL Listed as Type RHH or RHW-2
• or c(UL) Certified as applicable
• RoHS Compliant
• Meets FT-5 Flame Test


Conductor: 8 AWG to 500 MCM fully annealed stranded bare copper Stranding per ASTM B 174

 Insulation: Premium grade oil resistant Ethylene Propylene (EPDM)

  Jacket: Premium grade, water, sunlight, and oil resistant, flame-retardant, Chlorinated Polyethylene (CPE)


Excellent impact and abrasion resistance

Withstand exposure to oil, acids, alkalies, heat, moisture and most chemicals

Indent printed for easy identification

Rope lay stranding for maximum flex life

Cable core bound for superior flexibility and toughness

Resists:Heat ,Oil,Weather,Ozone,Abrasion

Temp range:-40°C to 90°C Dry

-40°C to 75°C Wet
